Introduction

In the world of microservices, where distributed systems communicate over unreliable networks, exception handling becomes more than just a defensive mechanism — it is a key strategy for ensuring resilience and fault tolerance. Unlike monolithic applications, a microservice failure can cascade into system-wide outages if not properly contained.

This is where Resilience4j and design patterns like Retry, Fallback, and Circuit Breaker play a vital role. They allow developers to gracefully handle exceptions, recover from transient failures, and maintain application availability.

Think of exception handling in microservices like an air traffic control system: when one runway is unavailable, traffic is redirected, retries are made, or flights are rerouted — ensuring the entire system doesn’t collapse.

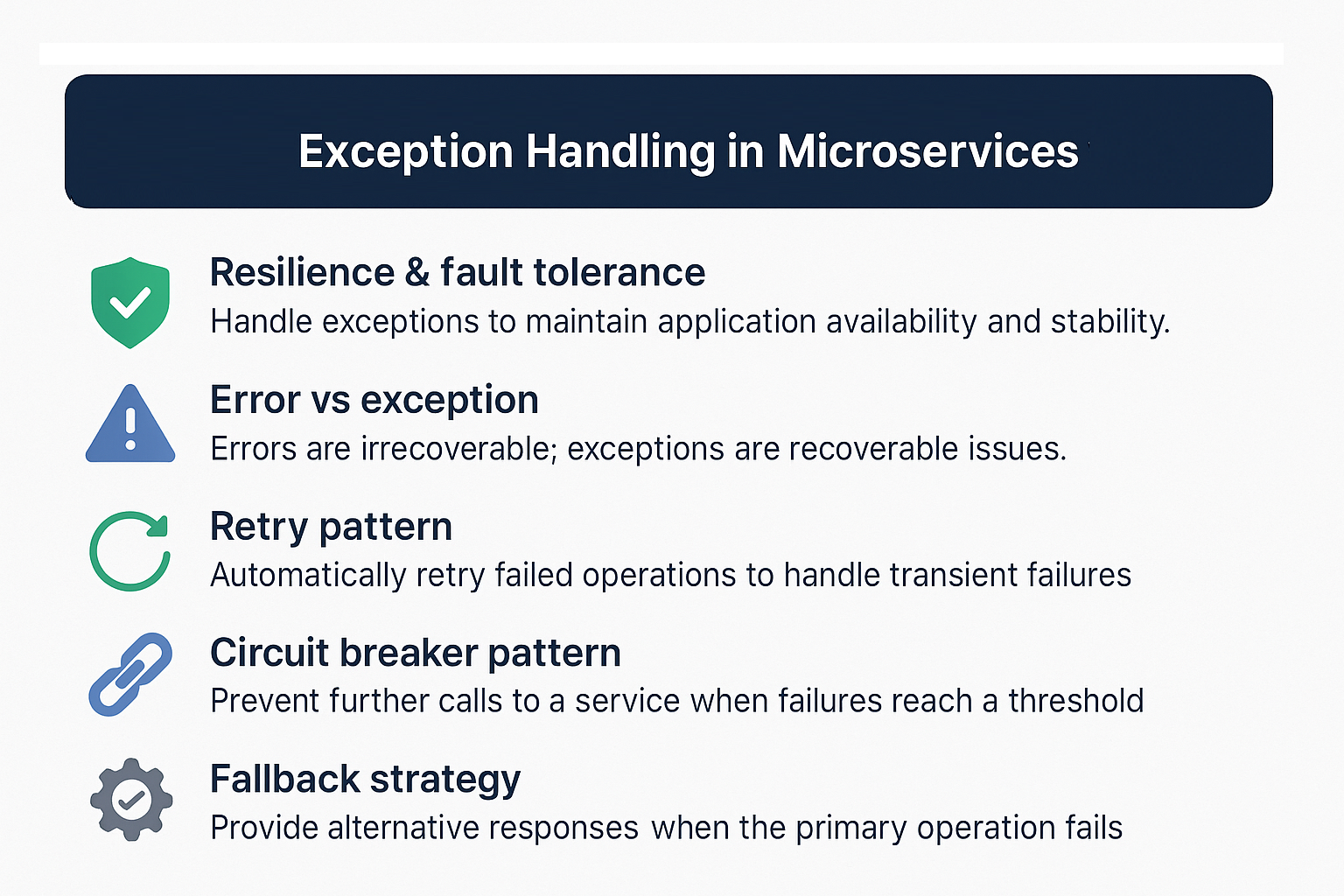

Core Definition and Purpose of Exception Handling

Exception handling ensures that when unexpected conditions occur, the system:

Avoids crashing abruptly.
Logs and communicates the error meaningfully.
Applies recovery strategies (retry, fallback, degrade gracefully).
Maintains user experience consistency.

In microservices, it extends to inter-service communication, API gateways, and message brokers, where network failures, timeouts, and database errors are common.

Errors vs Exceptions in Java

Error: Irrecoverable problems (e.g., OutOfMemoryError, StackOverflowError). Avoid catching them in business code.
Exception: Recoverable issues that can be handled logically.
- Checked Exceptions: Must be declared or handled (e.g., SQLException).
- Unchecked Exceptions (Runtime): Often represent programming mistakes (e.g., NullPointerException).

In microservices, most issues (timeouts, service unavailability, DB connectivity) manifest as runtime exceptions, which are wrapped and retried.

Exception Hierarchy Refresher

Throwable
 ├── Error (e.g., OutOfMemoryError)
 └── Exception
       ├── RuntimeException (Unchecked)
       └── IOException, SQLException (Checked)

Microservices Exception Challenges

Network Timeouts – Remote service may be unreachable.
Partial Failures – One microservice is down, but others remain active.
Cascading Failures – One failure causes a chain reaction.
Retry Storms – Blind retries can overwhelm a failing service.
Error Transparency – Must communicate failure meaningfully via APIs (HTTP status, JSON response).

Resilience4j Overview

Resilience4j is a lightweight fault tolerance library designed for Java 8+ and functional programming. It provides modules like:

Retry – Automatic retries on failures.
Circuit Breaker – Stops calling a failing service temporarily.
Rate Limiter – Prevents overload by limiting requests.
Bulkhead – Isolates resources to prevent total failure.
Fallback – Provides an alternative response when the primary fails.

Retry Pattern with Resilience4j

Retries handle transient failures like network glitches.

Example: Retrying a Remote API Call

RetryConfig config = RetryConfig.custom()
    .maxAttempts(3)
    .waitDuration(Duration.ofMillis(500))
    .build();

Retry retry = Retry.of("remoteService", config);

Supplier<String> supplier = Retry.decorateSupplier(retry,
    () -> restTemplate.getForObject("http://orders/api", String.class));

String response = Try.ofSupplier(supplier)
    .recover(ex -> "Fallback Response")
    .get();

maxAttempts(3): Tries 3 times before failing.
waitDuration: Delay between retries.
recover: Defines fallback behavior.

Circuit Breaker Pattern

The Circuit Breaker prevents repeated calls to a failing service, reducing system load.

Example: Circuit Breaker with Fallback

CircuitBreakerConfig config = CircuitBreakerConfig.custom()
    .failureRateThreshold(50)
    .waitDurationInOpenState(Duration.ofSeconds(5))
    .slidingWindowSize(10)
    .build();

CircuitBreaker circuitBreaker = CircuitBreaker.of("paymentService", config);

Supplier<String> decoratedSupplier = CircuitBreaker
    .decorateSupplier(circuitBreaker,
        () -> restTemplate.getForObject("http://payment/api", String.class));

String result = Try.ofSupplier(decoratedSupplier)
    .recover(ex -> "Payment Service Unavailable - Please try later")
    .get();

Here:

If more than 50% of calls fail, the breaker trips open.
After 5 seconds, it allows a trial request to check recovery.
If still failing, it remains open.

Combining Retry + Circuit Breaker

Resilience4j allows composing resilience patterns:

Supplier<String> combined = Decorators.ofSupplier(() -> callRemoteApi())
    .withRetry(retry)
    .withCircuitBreaker(circuitBreaker)
    .withFallback(
        Collections.singletonList(Throwable.class),
        ex -> "Graceful Degradation Response")
    .decorate();

This ensures retries occur only when the circuit is closed, and fallbacks protect against failures.

Exception Handling in Transactions

In microservices, database transactions may span across services (distributed transactions). Instead of 2PC (two-phase commit), patterns like Sagas are used with compensating transactions. Exceptions play a key role here in triggering rollbacks or compensating actions.

Logging Exceptions in Microservices

Always log exceptions with context:

try {
    service.call();
} catch (ServiceUnavailableException ex) {
    logger.error("Service call failed for userId={}, requestId={}", userId, reqId, ex);
}

Use centralized logging (ELK stack, Splunk) for correlation across services.

Best Practices

Use Resilience4j instead of custom retry logic.
Avoid swallowing exceptions — always log or rethrow.
Apply fallbacks for critical paths (payment, authentication).
Use HTTP status codes consistently (e.g., 503 for service unavailable).
Prevent retry storms with exponential backoff.
Combine exception handling with metrics for observability.

📌 What's New in Java Versions?

Java 7+: Try-with-resources for automatic cleanup.
Java 8: Functional programming style with lambdas, improved exception handling in streams.
Java 9+: Stack-Walking API for advanced debugging.
Java 14+: Helpful NullPointerExceptions with detailed messages.
Java 21: Virtual threads + structured concurrency improve async error handling in distributed systems.

FAQ

Q1. Why not just rely on try-catch for microservices exceptions?
Because distributed failures need resilience patterns (retry, fallback, circuit breaker) beyond local try-catch.

Q2. How do retries avoid overwhelming a service?
By using exponential backoff and limits on max attempts.

Q3. Is Circuit Breaker the same as Retry?
No. Retry retries failed calls, Circuit Breaker prevents calls when failures are persistent.

Q4. How do I test exception handling in microservices?
By simulating failures with tools like Chaos Monkey or by mocking service timeouts.

Q5. How are exceptions translated in REST APIs?
Using @ControllerAdvice in Spring Boot to convert exceptions into meaningful ResponseEntity outputs.

Q6. Can I combine multiple Resilience4j patterns?
Yes, Retry + Circuit Breaker + Fallback is a common combo.

Q7. Should I catch Error types in microservices?
No. Errors are unrecoverable (like OutOfMemoryError). Handle only Exception types.

Q8. What’s the role of observability in exception handling?
Logs, metrics, and traces are crucial for diagnosing failures across microservices.

Q9. How do I handle database transaction failures in microservices?
Using Sagas and compensating transactions instead of global rollbacks.

Q10. Does exception handling affect performance?
Yes, but Resilience4j is lightweight and avoids reflection-based overhead, making it production-grade.

Conclusion and Key Takeaways

Exception handling in microservices is about graceful degradation, not just avoiding crashes. With Resilience4j, developers gain robust retry, fallback, and circuit breaker strategies that:

Improve system resilience.
Prevent cascading failures.
Provide better user experience even during outages.

Like airbags in a car, exception handling mechanisms are rarely used under normal conditions, but when failures occur, they save the system from disaster.
